货号: #SS-8-VCO-6-810
库存: 0件
规格选项:

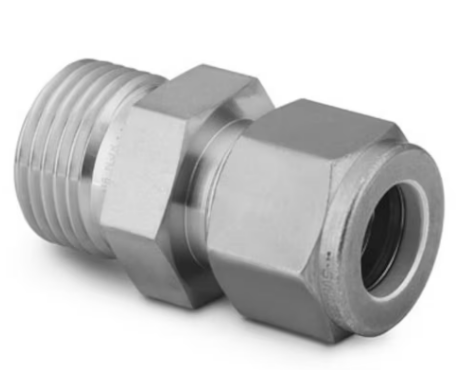

易于装配的世伟洛克 VCO® O 型圈面密封接头具有完全包含在接头本体内的金属对弹性体密封，可在高纯度和一般工业公称管、卡套管和焊接系统中进行简单、快速和无泄漏的安装。
可提供以下规格的接头：
1/8 至 1 in.
卡套管、NPT、SAE 螺纹、焊接接头
316 或 316L 不锈钢
最大压力 2200 psig (151 bar) 至 15 400 psig (1061 bar)
零部件号 | 阀体材料 | 接头 1 尺寸 | 接头 1 类型 | 接头 2 尺寸 | 接头 2 类型 | ||
|---|---|---|---|---|---|---|---|
| SS-8-VCO-6-600 | 316 不锈钢 | 1/2 in. | VCO® O 型圈面密封接头 | 3/8 in. | 世伟洛克® 卡套管接头 | ||
| SS-8-VCO-6-810 | 316 不锈钢 | 1/2 in. | VCO® O 型圈面密封接头 | 1/2 in. | 世伟洛克® 卡套管接头 | ||
| 316L-4-VCO-1A | 316L 不锈钢 | 1/4 in. | VCO® O 型圈面密封接头 | 1/4 in. | 自动卡套管对焊 | ||
| SS-12-VCO-1-12 | 316 不锈钢 | 3/4 in. | VCO® O 型圈面密封接头 | 3/4 in. | 外螺纹 NPT | ||
| SS-12-VCO-6-1210 | 316 不锈钢 | 3/4 in. | VCO® O 型圈面密封接头 | 3/4 in. | 世伟洛克® 卡套管接头 | ||
| SS-16-VCO-1 | 316 不锈钢 | 1 in. | VCO® O 型圈面密封接头 | 1 in. | 卡套管承插焊接 | ||
| SS-16-VCO-1-16 | 316 不锈钢 | 1 in. | VCO® O 型圈面密封接头 | 1 in. | 外螺纹 NPT | ||
| SS-4-VCO-1 | 316 不锈钢 | 1/4 in. | VCO® O 型圈面密封接头 | 1/4 in. | 卡套管承插焊接 | ||
| SS-4-VCO-1-2 | 316 不锈钢 | 1/4 in. | VCO® O 型圈面密封接头 | 1/8 in. | 外螺纹 NPT | ||
| SS-4-VCO-1-4 | 316 不锈钢 | 1/4 in. | VCO® O 型圈面密封接头 | 1/4 in. | 外螺纹 NPT | ||
| 316L-4-VCO-1A | 316L 不锈钢 | 1/4 in. | VCO® O 型圈面密封接头 | 1/4 in. | 自动卡套管对焊 | ||
| SS-4-VCO-1 | 316 不锈钢 | 1/4 in. | VCO® O 型圈面密封接头 | 1/4 in. | 卡套管承插焊接 | ||
| SS-4-VCO-1-2 | 316 不锈钢 | 1/4 in. | VCO® O 型圈面密封接头 | 1/8 in. | 外螺纹 NPT | ||
| SS-4-VCO-1-4 | 316 不锈钢 | 1/4 in. | VCO® O 型圈面密封接头 | 1/4 in. | 外螺纹 NPT | ||
| SS-4-VCO-1-4ST | 316 不锈钢 | 1/4 in. | VCO® O 型圈面密封接头 | 7/16-20 in. | SAE/MS 直外螺纹 | ||
| SS-4-VCO-1-6ST | 316 不锈钢 | 1/4 in. | VCO® O 型圈面密封接头 | 9/16-18 in. | SAE/MS 直外螺纹 | ||
| SS-4-VCO-1-BL | 316 不锈钢 | 1/4 in. | VCO® O 型圈面密封盲孔（未钻孔）本体 | - | - | ||
| SS-4-VCO-6-6M0 | 316 不锈钢 | 1/4 in. | VCO® O 型圈面密封接头 | 6 mm | 世伟洛克® 卡套管接头 | ||
| SS-4-VCO-6-200 | 316 不锈钢 | 1/4 in. | VCO® O 型圈面密封接头 | 1/8 in. | 世伟洛克® 卡套管接头 | ||
| SS-4-VCO-6-400 | 316 不锈钢 | 1/4 in. | VCO® O 型圈面密封接头 | 1/4 in. | 世伟洛克® 卡套管接头 | ||
| SS-16-VCO-1-16 | 316 不锈钢 | 1 in. | VCO® O 型圈面密封接头 | 1 in. | 外螺纹 NPT | ||
| SS-16-VCO-1 | 316 不锈钢 | 1 in. | VCO® O 型圈面密封接头 | 1 in. | 卡套管承插焊接 | ||
| SS-12-VCO-6-1210 | 316 不锈钢 | 3/4 in. | VCO® O 型圈面密封接头 | 3/4 in. | 世伟洛克® 卡套管接头 | ||
| SS-12-VCO-1-12 | 316 不锈钢 | 3/4 in. | VCO® O 型圈面密封接头 | 3/4 in. | 外螺纹 NPT | ||
| SS-8-VCO-6-810 | 316 不锈钢 | 1/2 in. | VCO® O 型圈面密封接头 | 1/2 in. | 世伟洛克® 卡套管接头 | ||
| SS-8-VCO-6-600 | 316 不锈钢 | 1/2 in. | VCO® O 型圈面密封接头 | 3/8 in. | 世伟洛克® 卡套管接头 | ||
| SS-8-VCO-1-BL | 316 不锈钢 | 1/2 in. | VCO® O 型圈面密封盲孔（未钻孔）本体 | - | - | ||
| SS-8-VCO-1-8 | 316 不锈钢 | 1/2 in. | VCO® O 型圈面密封接头 | 1/2 in. | 外螺纹 NPT | ||
| SS-8-VCO-1-6ST | 316 不锈钢 | 1/2 in. | VCO® O 型圈面密封接头 | 9/16-18 in. | SAE/MS 直外螺纹 | ||
| SS-8-VCO-1-6 | 316 不锈钢 | 1/2 in. | VCO® O 型圈面密封接头 | 3/8 in. | 外螺纹 NPT | ||
