FRANCE JOINT旋转密封件 / V形环

FRANCE JOINT旋转密封件 / V形环  BECA 120VL

法国FRANCE JOINT公司

‌法国FRANCE JOINT公司‌成立于1981年，专注于为所有客户设计、制造和销售密封技术和精密橡胶零件。公司的主要产品包括液压密封、气动密封、耐磨环、导向条、旋转密封、标准轴封、浮动密封、航天密封、自动密封、精密密封、卫生密封、COMBI密封、O型环、四层环、X环、备用环、静态密封、导向组件、轴套等‌12。

FRANCE JOINT公司在多个业务部门积累了广泛的专业知识，能够提供定制和高性能的解决方案。公司通过了ISO 9001、ISO/TS 16949和EN/AS 9100认证，确保了卓越的产品质量‌1。此外，FRANCE JOINT还在不断加强其质量方法，通过收购新一代三维光学测量机，配备了高分辨率相机、雷尼绍palper和强大的Inspec软件，以应对所有控制质量的应用‌。

 FRANCE JOINT公司的产品广泛应用于各种工业领域，以其高质量和可靠性赢得了客户的信赖。

这杆密封件，主要用于液压缸必须确保流体的密封，同时满足极端使用条件。无论他们的形式，无论是一个复合密封，一个紧密密封或者一个唇形密封(也称为U型密封)，我们将帮助您选择密封，同时考虑不同的变量，如压力、温度、介质类型、速度、频率、表面粗糙度和其他特定参数。

下面你会发现我们的整个标准系列杆密封件。我们的技术支持团队可以讨论任何具体的创作。

描述

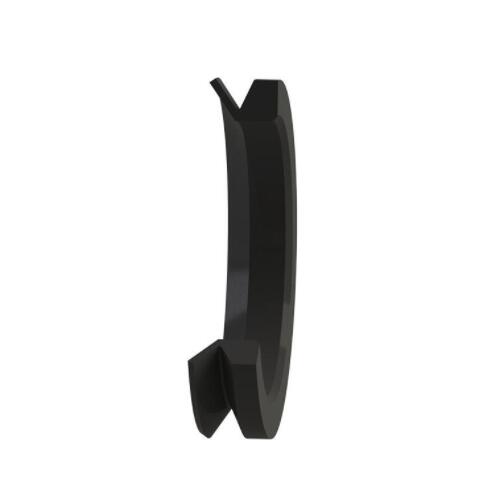

BECA 120VL轮廓是一个橡胶面部效果V形环。

优势

优异的化学兼容性和宽温度范围，取决于所选材料的类型

低摩擦

弹性好

适用于受限空间，替代迷宫式密封

应用程序

普通工业

材料

丁腈橡胶60 - 70肖氏硬度A

FKM 60 - 70肖氏硬度A

相关型号：

120.VL130

125,0 - 135,0 117,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL140

135,0 - 145,0 126,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL150

145,0 - 155,0 135,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL160

155,0 - 165,0 144,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL170

165,0 - 175,0 153,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL180

175,0 - 185,0 162,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL200

195,0 - 210,0 182,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL220

210,0 - 233,0 198,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL250

233,0 - 260,0 225,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL275

260,0 - 285,0 247,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL300

285,0 - 310,0 270,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL325

310,0 - 335,0 292,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL350

335,0 - 365,0 315,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL375

365,0 - 385,0 337,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL400

385,0 - 410,0 360,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL425

410,0 - 440,0 382,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL450

440,0 - 475,0 405,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL500

475,0 - 510,0 450,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL525

510,0 - 540,0 472,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL550

540,0 - 575,0 495,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL600

575,0 - 625,0 540,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL650

625,0 - 675,0 600,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL700

675,0 - 710,0 630,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL725

710,0 - 740,0 670,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL750

740,0 - 775,0 705,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL800

775,0 - 825,0 745,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL850

825,0 - 875,0 785,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL900

875,0 - 925,0 825,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL950

952,0 - 975,0 865,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL110

105,0 - 115,0 99,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL120

115,0 - 125,0 108,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.VL190

185,0 - 195,0 171,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.L1000

975,0 - 1025,0 910,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0

120.L1050

1025,0 - 1075,0 955,00 10,50 6,50 6,00 8,0 ± 1,5 d1 + 5,0 d1 + 20,0
