KAST Motor测试系统

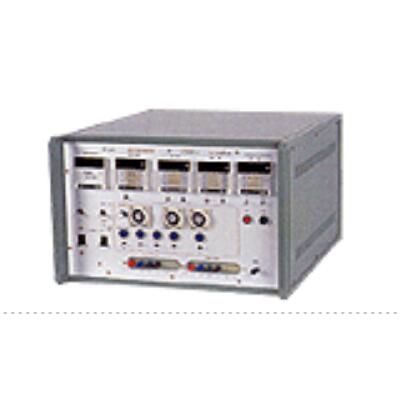

照片的解释

本设备作为测试卸载电流-电力-穿刺-成品旋转方向的示例产品。电机可根据需要增加测试项目。只有在确定旋转方向时，才专门配制了一种特殊的装电机试验夹具。

解释

一个成品（Ass’y）电机的测试必须包括卸载电流测试（电流，额定电压下消耗的功率），并将旋转方向的确定，穿孔测试作为重要的测试项目。同时，也可以进行性能试验、负载试验（在连接额定负载的制动器或风扇的情况下，确定转速、转矩、消耗功率等），但这些试验的设备价格昂贵，结构复杂。因此，根据场合需要，可增加电阻试验、浪涌试验和绝缘试验。

标准规格

设备工作电压ac110v、220v， 50 ~ 60hz

电动机交流电压110v ~ 440v单相或三相

测量项目-卸载消耗电流（对于速度诱导变换的电机，每转速一次）

-一次测量卸载消耗功率（P=E·I）

-穿刺测试一次

—旋转方向确认：（或转速测试）一次

-绝缘测试：线圈与铁芯之间一次

-测试时间：自由设置定时器在每一步。

机柜型或有时根据需要制造，夹具的设置由电机类型或试验项目决定。

此图用于测量成品电机负载连接上的转数、转矩、消耗功率等。它的结构复杂，有电动制动器、离合器、扭矩计等，用于调节负载量。

图的解释

不。名字

1. 扭矩传感器

2. 扭矩显示装置

3. 速度传感器

4. 离合器

5. 旋转方向检测器

6. 粉制动器

7. 发动机缓振电动机（感应电动机）

8. 阳极

9. SM-5插头

10. 阴极

11. 设置夹具

12. 起动电动机

13. 电源开关

14. 阴极

15. 控制开关箱

16. 电力供应

17. 检查终端

18. 显示面板

Photo explanation This facility as an example product for testing Unload Current- Electric Power-Puncture- Rotation direction of a finished product Motor can add test items as occasion demands. Only, to confirm the rotation direction, the peculiar type of test jig for putting on Motor has been specially composed. Explanation A finished product(Ass'y) Motor test necessarily includes unload current test (current, electric power consumed at the impression of a rated voltage) and also treats the confirmation of rotation direction, puncture test as important test items. Meanwhile, performance test, load test (confirmation of the RPM, Torque, Consumption Power, etc on the condition of connecting a rated loaded Brake or Fan) may be performed,but the equipments for these tests are very expensive and its structure becomes complicated. As the result, as occasion demands, resistance test, surge test and insulation test may be added. Standard Specifications Equipment working voltage AC110 V, 220 V, 50 ~ 60 Hz Supplied voltage to Motor AC 110 V~440 V single-phase or three-phase Measurement item - Unload consumption current(one time per each speed as for motor of which speed induces transformation) - Measurement of unload consumption power(P=E¡¤I) one time - Puncture test one time - The confirmation of Rotation direction : (or RPM test) one time - Insulation test : One time between coil and core - Test time : Freely set up by Timer at every step. Dimensions Cabinet type or sometimes manufactured as occasion demands, the jig for setting is decided by the Motor type or test item.   This Figure is to measure RPM, Torque, Consumption power, etc on the load connection of finished product Motor. Its structure is complicated because there is an electric Brake, Clutch, Torque meter, etc used for adjusting a load amount. Figure Explanation NO. NAME 1. TORQUE SENSOR 2. TORQUE DISPLAY UNIT 3. SPEED SENSOR 4. CLUTCH 5. REVOLVING DIRECTION DETECTOR 6. POWDER BRAKE 7. ENGINE RELIEF MOTOR(INDUCTION MOTOR) 8. ANODE 9. SM-5 PLUG 10. CATHODE 11. SETTING JIG 12. STARTING MOTOR 13. POWER SWITCH 14. CATHODE 15. CONTROL SWITCH BOX 16. POWER SUPPLY 17. CHECK TERMINAL 18. DISPLAY PANEL
